MKT Type WATER SIGNAL

  [ Flow rate can be seen with the naked eye ] because you are using a transparent tapered tube, with a display red line ball (or float) 　 it is possible to check the approximate flow rate by looking at the relationship between position. [Mounting orientation does not matter ] attitude of when mounting because it uses a spring inside the upward and downward and 　 can be done sideways, etc. freely.
　


　

Model List

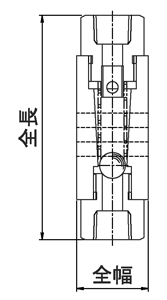

 Model     Dimensions (mm)  Standard flow rate
(L / min)
 Port size full length  Full width  minimum maximum
MKT25-1TW  RC1 / 8 78 twenty five One Six
MKT25-2TW Rc1 / 4 78 twenty five One Six
MKT25-3TW Rc3 / 8 84 twenty five One Six
MKT30-2TW Rc1 / 4 104 Thirty Three Twenty
MKT30-3TW Rc3 / 8 104 Thirty Three Twenty
MKT30-4TW Rc1 / 2 110 Thirty Three Twenty
When ordering, quote □ Please specify the inside of.　
Model
MKT □□ - □ TW		  Regular flow rate
□ L / Min
Example: MKT25-2TW regular flow 3L / min supplement of about ※ model　the type of case where the connection inlet outlet of R male threads MKT □□ - will be □ TOW. Example: MKT25-3TOW 　type of case connection entrance of R male threads MKT □□ - will be □ TOMW.Example: MKT25-3TOMW 　the type of case where the connection outlet of R male threads MKT □□ - will be □ TMOW. Example: MKT25-3TMOW standard specification






 fluid water
Flow rate  See above Please contact us when you hope for more than the standard specification flow rate below -.
 Connection Rc female thread  Changes to the R male thread
combination with R male thread is also available.
 Heatproof temperature Maximum 80 ℃ -
 Breakdown 1MPa -
Material Transparent tube acrylic -
Fittings C3604 (brass) Made of SUS are also available.
spring SUS304 -
Nylon ball Nylon 66 You may need to use a cylindrical float.
O-ring Nitrile rubber -
