MKCM type AIR SIGNAL

Home > Manufacturer > MAEDA KOKI > Air Signal >

[ Flow rate with a switch ]
　 to detect the flow of fluid, it is turned ON or OFF the switch at your specified flow rate
　 ※ switch is fixed (can not be set value changes later) [ flow is visible at a glance ] transparent tube of a galvanometer to check the flow of fluid in the movement of the float [ with protective cover ] by the metal protective cover the possibility of damage due to impact or the like from the outside 　 and reduce. [Mounting orientation does not matter ]　attitude of when mounting because it uses a spring inside is 　you can do up and down and sideways, etc. freely.

　

　

Model List

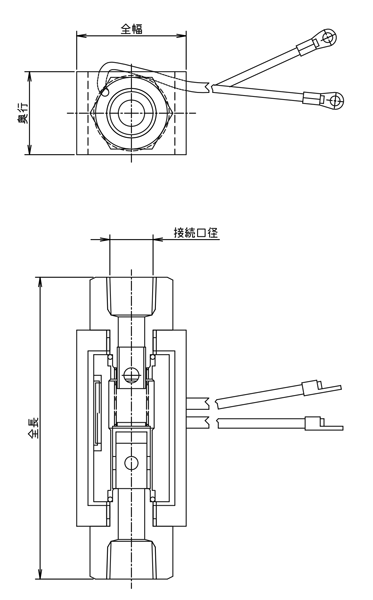

Model	Dimensions (mm)					Flow rate (L / min)
	Port size	full length	Full width	Depth	Minimum inside diameter φmm	Specified range of operating flow rate	maximum
MKCM20-1TA-OFF	Rc1 / 8	80	Thirty	twenty two	6.5	1 to 40	300
MKCM20-1TA-ON
MKCM20-2TA-OFF	Rc1 / 4	80	Thirty	twenty two	6.5	1 to 40	300
MKCM20-2TA-ON
MKCM20-3TA-OFF	Rc3 / 8	86	Thirty	twenty five	6.5	1 to 40	300
MKCM20-3TA-ON
MKCM30-2TA-OFF	Rc1 / 4	104	43	32	9.5	5 to 100	600
MKCM30-2TA-ON
MKCM30-3TA-OFF	Rc3 / 8	104	43	32	9.5	5 to 100	600
MKCM30-3TA-ON
MKCM30-4TA-OFF	Rc1 / 2	110	43	32	9.5	5 to 100	600
MKCM30-4TA-ON
MKCM35-4TA-OFF	Rc1 / 2	124	49	44	13.5	30 to 150	1500
MKCM35-4TA-ON
MKCM35-6TA-OFF	Rc3 / 4	124	49	44	13.5	30 to 150	1500
MKCM35-6TA-ON
MKCM45-6TA-OFF	Rc3 / 4	142	62	Fifty	18.0	50 to 300	3000
MKCM45-6TA-ON
MKCM45-8TA-OFF	Rc1	142	62	Fifty	18.0	50 to 300	3000
MKCM45-8TA-ON

When ordering, quote □ Please specify the inside of.

Model
MKCM □□ - □ TA-OFF (ON)

Operating flow rate of the switch □ L / Min

Example: MKCM20-2TA-OFF　operation of the switch flow rate 30L / min

※ contact method Please specify the is OFF method or the ON system.
　Contact is OFF (normally open · A contact) when the OFF mode, the fluid does not flow
　contact is ON (normally closed · B contact) when it is not ON system, and fluid flow standard specification

fluid		gas
Operating flow rate		Above, please specify at a flow rate value within the specified range of operating flow rate.
Connection		Rc female thread	Changes to the R male thread combination with R male thread is also available.
Heatproof temperature		Maximum 60 ℃	Heat-resistant (up to 100 ℃) are also available.
Breakdown		1MPa	The breakdown voltage specification (highest 5MPa) are also available.
Maximum working voltage		DC, AC 300V
Maximum current		DC, AC 0.5A
Contact capacity		50VA
Material quality	Transparent tube	acrylic	Heat resistance and breakdown voltage specification product will be the brass tube (C3604). Heat resistance and breakdown voltage specification product can not be visually float.
	Protective cover	BC (gunmetal)	Aluminum can also be manufactured.
	Fittings	C3604 (brass)	Made of SUS are also available.
	spring	SUS304	-
	Magnet containing float	Acrylic or nylon	You may need to use the aluminum depending on the specifications.
	O-ring	Nitrile rubber	Heat resistance and breakdown voltage specification will be the fluorine rubber.
	Reed switch	Commercial goods	-
	Lead (standard 200mm)	Commercial goods	Designation of the length of the lead, it is also possible to change to the cab tire cord.

Caution on the flow switch use
1. Notes on the magnetic impact
　● reed switch, since the switch acting on a magnetic, used where not affected by the magnetic field, please.
　● When the magnetic material of iron such as in the vicinity of the reed switch is present, it becomes the cause of the malfunction.
2. Notes on the electrical connection
　● flow switch, it is an over-current flows through the reed switch in the cause, such as a ground wire connection failure as no
　　Please note the connection.
　● Please use as much as possible the alarm detector flow switch.
　　In conjunction with other electrical equipment if you want to use and is, on the sufficient consideration of the influence of when the malfunction occurs, please handling.
　● use voltage, when used in suppressing the current used is as small as possible, the life of the reed switch is long Masu no longer.
　　(Usually 100V0.5A about under the circumstances 100Million times switch actuation can be used)
