Tianjin Dingjia 3GCL50×2

Home > Manufacturer > Tianjin Dingjia > 3G >

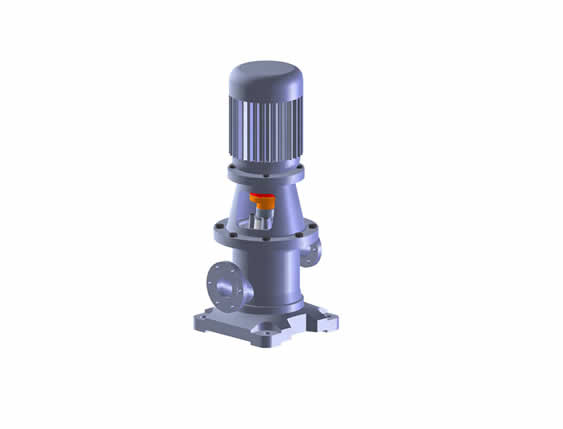

3GCL50×2
product description


CL, CG, T series three screw pump performance parameters
Pump model Flow pressure
P
MPa		 Rotating speed
n
r/min		 Power p(kw) Allow to suck up the vacuum height
HS(m)		 import
Mm		 Export
Mm		 Pump weight
w(kg)		 motor model
(Y series)
M 3 /h L/min Shaft power Motor
power
3GCL

 50×2		 18 300 5 2900 3.6 4 4.5 80 50 147 Y112M-2B5
17.5 290 4.83 5.2 5.5 Y132S1-2B5
16 165 4.42 7.2 7.5 Y132S2-2B5
9 150 2.5 1450 1.9 2.2 Y100L1-4B5
8.2 135 2.25 2.6 3 Y100L2-4B5
7.5 125 2.08 3.6 4 Y112M-4B5
70×2 25 415 0.4 1450 5 5.5 4.5 100 65 180 Y132S-4B5
24.5 405 0.6 7 11 Y160M-4B5
twenty four 400 0.8 9 11 Y160M-4B5
16 265 0.4 970 3.3 4 Y132M1-6B5
15 250 0.6 4.8 5.5 Y132M2-6B5
14 230 0.8 5.9 7.5 Y160M-6B5
85×2 44 730 0.4 1450 9.5 11 4.5 125 80 265 Y160M-4B5
43 715 0.6 12.5 15 Y160L-4B5
41 680 0.8 15 18.5 Y180M-4B5
30 500 0.4 970 6.7 7.5 Y160M-6B5
28 465 0.6 8 11 Y160L-6B5
25 430 0.8 10 15 Y180L-6B5
100×2 72 1198 0.4 1450 16 18.5 4 150 100 320 Y180M-4B5
70 1165 0.6 20 twenty two Y180L-4B5
69 1150 0.8 25 30 Y200L-4B5
47 780 0.4 970 9.6 11 Y160L-6B5
45 750 0.6 13.5 15 Y180L-6B5
43 715 0.8 16.4 18.5 Y200L1-6B5
  110×2 96 1600 0.4 1450 17 twenty two 4 200 150 352 Y180L-4B5
94 1560 0.6 twenty three 30 Y200L-4B5
69 1530 0.8 29 37 Y225S-4B5
47 1050 0.4 970 12.8 15 Y180L-6B5
45 1,000 0.6 16.7 18.5 Y200L1-6B5
43 930 0.8 18.5 twenty two Y200L2-6B5






Pump model Flow pressure
P
MPa		 Rotating speed
n
r/min		 Power p(kw) Allow to suck up the vacuum height
HS(m)		 import
Mm		 Export
Mm		 Pump weight
w(kg)		 motor model
(Y series)
M 3 /h L/min Shaft power Motor
power
3GCG
75cst		 50×2 18 300 0.4 2900 3.6 4 4.5 80 50 95 YH112M-2B5(Z2C-32)
17.5 290 0.6 5.2 5.5 YH132S1-2B5(Z2C-42)
16 265 0.8 7.2 7.5 YH132S2-2B5 (Z2C-42)
10 165 0.5 2100 3.2 5 Z2C-51 web pressure (D2/L)
70×2 25 415 0.4 1450 5 5.5 4.5 100 65 135 YH132S2-4B5(Z2C-51)
twenty four 410 0.6 7 11 YH160M-4B5(Z2C-52)
23.5 400 0.8 9 11 YH160M-4B5
100×2 72 1200 0.4 1450 16 18.5 4 150 100 198 YH180M-4B5(Z2C-71)
70 1165 0.6 20 twenty two YH180L-4B5(Z2C-72)
69 1150 0.8 twenty four 30 YH200L-4B5 (Z2C-81)
110×2 96 1600 0.4 1450 17 twenty two 4 200 150 230 YH180L-4B5(Z2C-72)
94 1565 0.6 25 30 YH200L-4B5 (Z2C-81)
92 1530 .08 19 37 YH225S-4B5(Z2C-82)
90 1500 0.4 16.3 twenty two JO2H71-4
0.6 24.5 30 JO2H72-4


Pump model Flow pressure
P
MPa		 Rotating speed
n
r/min		 Power p(kw) Allow to suck up the vacuum height
HS(m)		 import
Mm		 Export
Mm		 Pump weight
w(kg)		 motor model
(Y series)
M 3/h L/min Shaft power Motor
power
3G
(75cst)		 25×4T 0.6 10 2.5 1450 1.1 1.5 6.5 25 20 twenty two Y90L-4B5
42×2T 10.5 17.5 1.0 2900 4.9 5.5 4.5 65 40 - Y132S1-2B5
50×2T 16 26.5 0.6 2900 5.2 5.5 4.5 80 50 60 Y132S1-2B5
 70×2T 23.5 400 0.8 1450 9 11 4.5 100 65 120 Y160M-4B5
 85×2T 41 380 0.8 1450 15 18.5 4.5 125 80 - Y180L-4B5
 85×3T  40 666.67 2.5 1450 42.5 45 Y225M-4B5
3GL 30×4 1.6 26.67 1.0 1450 0.9 1.5 6 32 25 - Y90L-4B5
1.2 20 2.5 1450 1.9 2.2 Y100L1-4B5
3.6 60 1.0 2900 1.9 2.2 5 Y90L-4B5
30×6 1.6 26.67 6.3 1450 3.6 5.5 Y132S-4B5
36×4 6.5 108.33 1.0 2900 3.2 4 5 50 40 twenty one Y112M-2B5
6 100 2.5 6.2 7.5 Y132S-2B5
2.8 46.67 1.0 1450 1.6 2.2 5.5 Y100L1-4B5
2.4 40 2.5 3.1 4 Y112M-4B5
